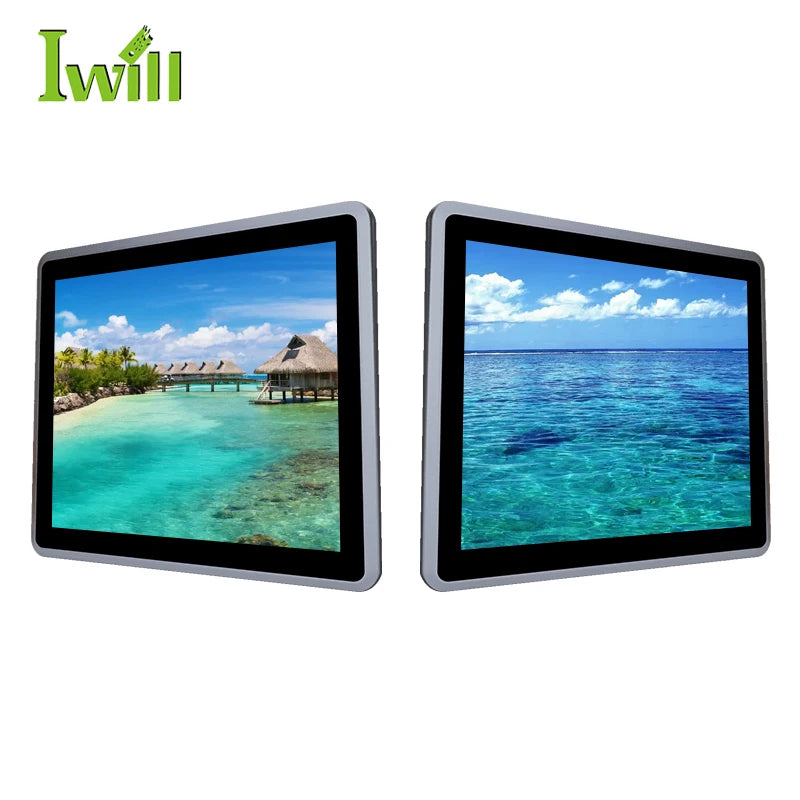

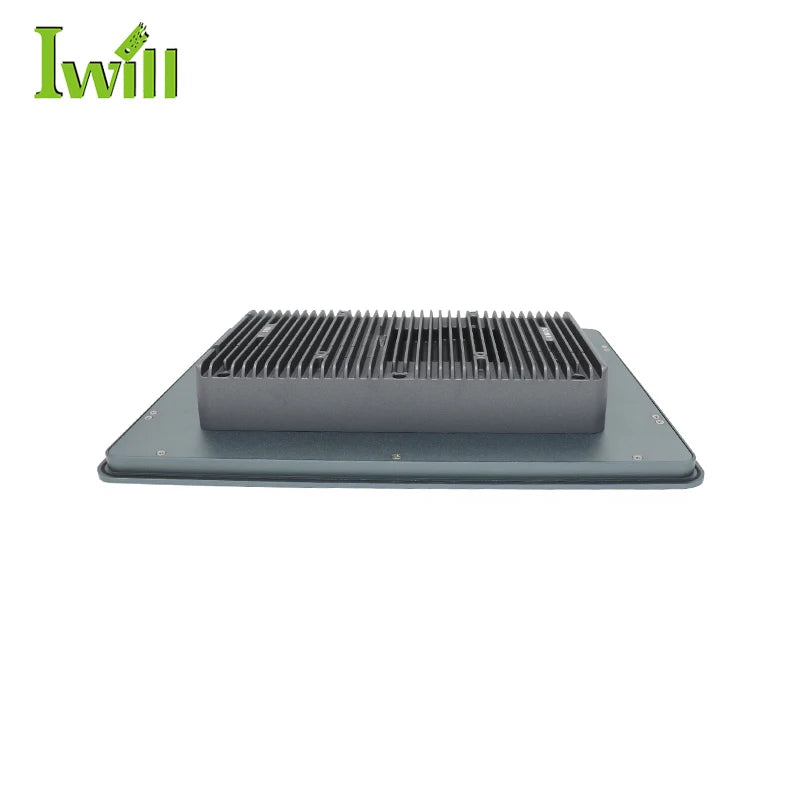

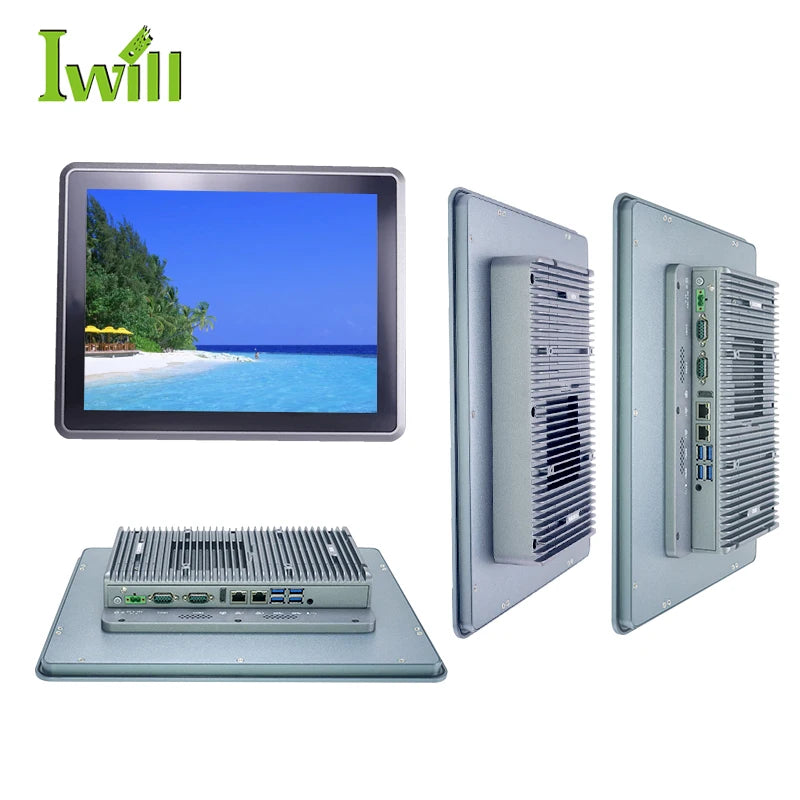

OEM Factory All in One Computer 15 Inch 10th I5 Resistive Industrial Touch Screen Computers with Ip65 Grade Waterproof

OEM Factory All in One Computer 15 Inch 10th I5 Resistive Industrial Touch Screen Computers with Ip65 Grade Waterproof

$550.00 USD $1,521.00 USD
Shipping calculated at checkout.
model number
  • type : Panel PC
  • brand name : IWILL
  • place of origin : Guangdong, China
  • products status : Stock
  • SCreen Size : 15 inch TFT-LCD
  • Ratio : 4:3
  • Brightness : 350 cd/m2
  • Other Function : Timing boot,Wake on LAN,PXE boot,Watchdog
  • Resolution : 1024 * 768
  • Processor : Int-el Cele-ron 4205U/Core i5-8265U/Core i5-8265U
  • RAM : 1*DDR4 Max. Support 32GB Memory Slot,
  • Storage : 1*M.2 2280 slot(SATA Protocol),1*2.5" HDD,Support RAID 0/1
  • Keywords : 15 inch industrial touch screen pc
  • OS Support : Win 10/11,Linux

Notice: This link's price is 10th i5 barebone system price, doesn't include ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

OEM Factory All in One Computer 15 Inch 10th I5 Resistive Industrial Touch Screen Computers with Ip65 Grade Waterproof
Product Paramenters
Model
ITPC-A500 15 inch Panel PC
Case Color
Titanium gray (Color can be customized)
Material
Aluminum alloy chassis
LCD
Size：15 inch TFT-LCD；
Brightness：350 cd/m2；
Viewing Angle：Full Angle
Ratio:4:3；
Resolution：1024 * 768；
CPU
Onboard In-tel Ce-leron 4205U（Dual core dual threads，1.8Ghz，2MB Cache）；
Onboard In-tel Core i5-8265U（Quad core eight threads，1.6Ghz，Max turbo 3.9Ghz，6MB Cache）；
Onboard In-tel Core i7-8565U（Quad core eight threads，1.8Ghz，Max turbo 4.6Ghz，8MB Cache）；
BIOS
AMI EFI BIOS
RAM
Support 1*DDR4 2133/2400 SODIMM Memory Slot，Max. Support 32GB
Storage
Onboard 1*M.2 2280 slot（SATA Protocol），1*2.5” HDD，Support RAID 0/1
Display Chip
Int-el UHD Graphics
Display Interface
1*HD，1*LVDS（Support synchronous and asynchronous dual display）

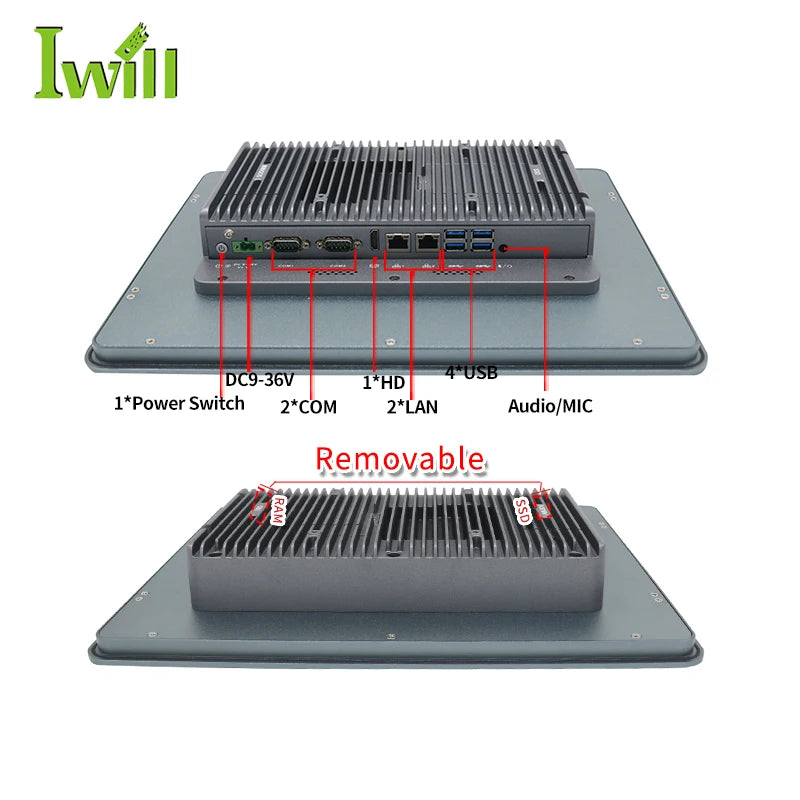

 I/O
1*HD，2*COM（COM1、COM2 RS232/RS422/RS485 Optional，6*COM Optional），1*Power Switch
 I/O
1*2Pin power supply phoenix connector，1*Audio (Support Mic and Speaker at the same time)，4*USB3.0，2*In-tel 1000M LAN（4*LAN Optional）
Expansion
GPIO（8 Input 8 Output）、2*LAN、4*COM、2*USB2.0 （Standard version doesn’t include these ports）
Other Function
TPM2.0 security encryption、Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard
version doesn’t set these function)
Expansion Function
1*Mini PCIE slot(Support WIFI/BT/3G/4G Optional,embedded SIM slot)
Touch Screen
Industrial grade multi-touch resistance touch screen，Life Time: more than 50000 Thousand Times;；
Speaker
Two 8-ohm 2-watt speaker
Power Supply
DC 9V ～ 36V wide voltage Input，support positive pole and negative electrode connect reversely protection；
Work Temp
0℃ ～ +50℃（Commercial），-20℃ ～ +60℃（Industrial SSD），Surface air flow
Work Humidity
5% ～ 95% non-condensing
Cetificates
CE, CCC, FCC Class A, ROHS

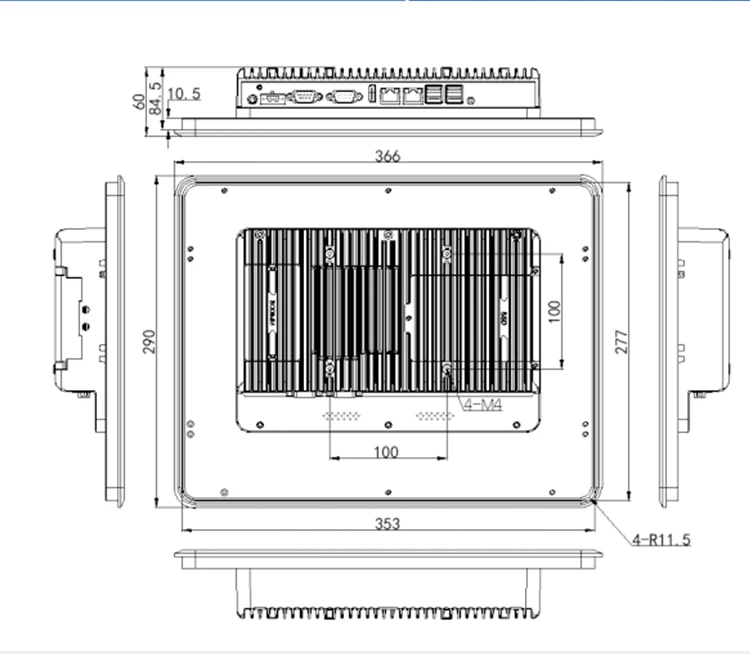

Dimension
366 * 290*60 mm
Embedded Installation
355 * 279 mm
Net Weight
3.9kg
Application
Industrial Automation，Medical，Logistics Transportation, Warehousing, Machine Vision, etc.

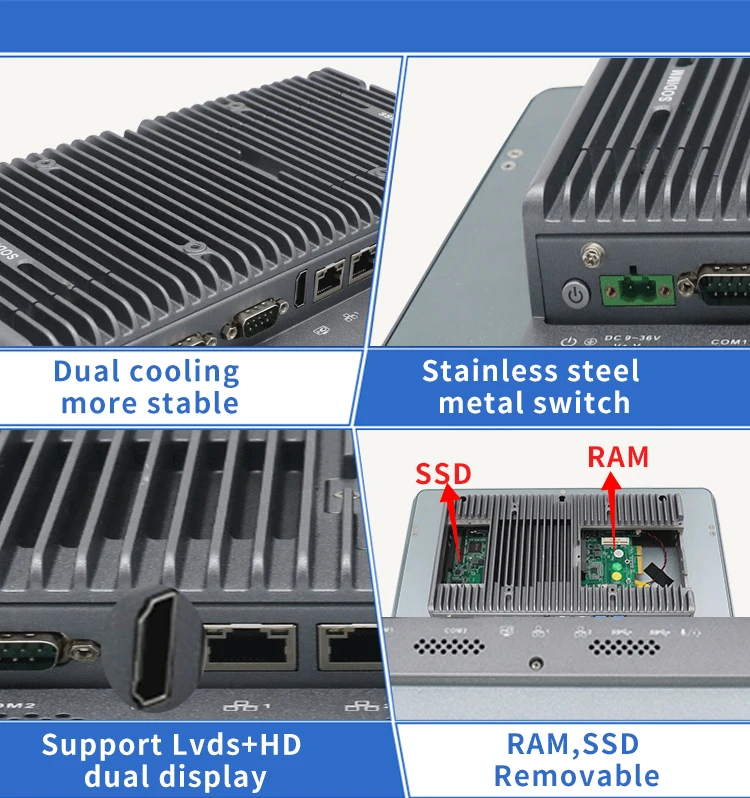

Details Images

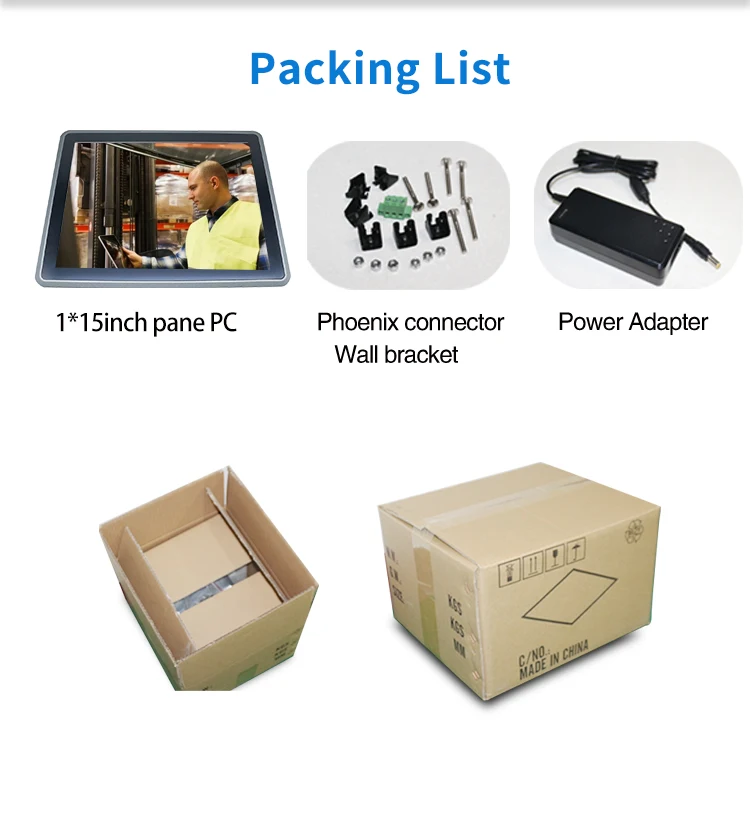

Packing & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Company Profile
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design,producing, processing, marketing and distribution. Main products cover mini PC, HTPC,embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.

Our Services & Strength

1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.

Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.

Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.

Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
